Non-Miter Dual Column Saws
Non-Miter Dual Column Saws Overview
When you are cutting solid materials or large diameter materials, you need the rigidity of a true dual column band saw. Our saw design offers true dual column support. Our standard saws range in capacity from (20″ to 60″) high to (20″ to 53″) wide. Custom application needs can be handled by our in-house engineering team. Saws include controls utilizing the latest touch-screen technology and offer a wide range of options for various cutting applications.
Non-Miter Dual Column Saws
H130-DC Series
- Capacity:
- 20" W x 20" H
- Motor:
- 10 HP
- Blade Size:
- 19' 0" L x 1.5" H x .050"
- Load Capacity:
- Up to 7,500 lbs.

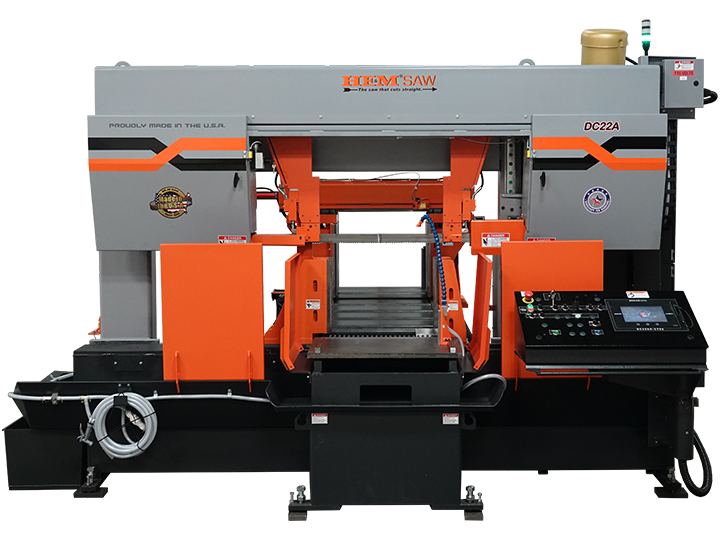

DC22 Series
- Capacity:
- 22" W x 22" H
- Motor:
- 10 HP
- Blade Size:
- 21' 0" L x 2" H x .063"
- Load Capacity:
- Up to 7,500 lbs.
H260-DC Series
- Capacity:
- 26" W x 26" H
- Motor:
- 15 HP
- Blade Size:
- 22' 0" L x 2" H x .063"
- Load Capacity:
- Up to 10,000 lbs.
H3236-DC Series
- Capacity:
- 36" W x 32" H
- Motor:
- 20 HP
- Blade Size:
- 27' 0" L x 2" H x .063"
- Load Capacity:
- Up to 10,000 lbs.
DC40+ Series
- Capacity:
- 45-53" W x 40-53" H
- Motor:
- 30 HP
- Blade Size:
- 2.625" H x .063"
- Load Capacity:
- Up to 10,000 lbs.
